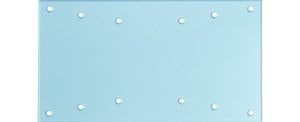

Connect the power supply module with four supplied spacers and use the space for installation of additional components.

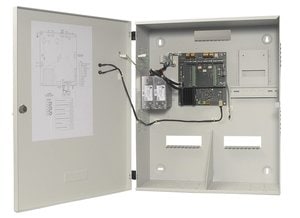

The external power supply unit DB-2, built into a powder-coated metal housing, offers space for up to two 12 V / 45 Ah batteries. A connection to the fire alarm control panels IQ8Control and FlexES Control can be made directly via the optional adapter board (part no. HLSPS-ADPTR) with an esserbus® alarm tranponder (part no. 808623). Alternatively, a relay output with floating changeover contact is available for the transmission of faults (mains, battery and collective faults as well as earth fault). DB-2 offers external LED display for operation and collective fault in the lockable front door, internal LEDs for detailed detection of emergency power operation, individual monitoring of battery failure, ground fault, deep battery discharge as well as system errors and mains failure. The settings for battery capacities and combinations are made via DIP switches on the base board of the DB-2.

The adapter board is an option for the HLSPS-DB2 power supply if more than one fault relay is required. The adapter board is equipped with a relay for mains, battery and collective faults as well as earth faults. In order to connect the DB-2 to the ESSER loop, the adapter board and the esserbus alarm tranponder (item no. 808623) are required. The optional tranpsonder is plugged onto the adapter board and the power supply unit is thus integrated into the esserbus. The fault relays are designed as changeover contacts, so the relays can still be used while the esserbus alarm transponder is attached.

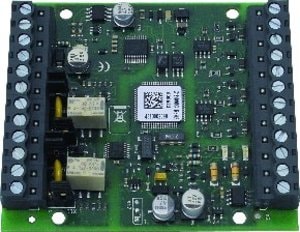

The esserbus transponder functions as a device on the multi-functional primary line. The connection of four zones with automatic standard detectors, manual call points (non-addressable) as well as special detectors is possible. In addition, two programmable relay outputs are also available. Both relay outputs of the transponder may be used to reset a connected third-party detector. The reset function relates to the corresponding special detector, e.g. by switching the appropriate input to GND or by a short interruption of the detectors supply voltage. Therefore, the control mode >Reset-Relay< as well as the desired relay operation mode (normally closed or open) must be configured with the programming software tools 8000 from V1.15 and above. The relay output will be activated for the selected reset time (1 to 14 seconds) if the assigned input (G1 for relay 1/G2 for relay 2) of the transponder is reset. Refer to the detectors manual for the required reset time.Monitoring via the EOL terminating devices (Part No. 808624/808626) is required for the connection of fire detectors and for the controlling of alarm signaling devices. The enclosed resistors can be used to connect the floating contacts. The esserbus alarm transponder requires an external voltage supply for operation of 4 monitored inputs. An optional Voltage Converter (Part No. 781336) is also required for 12 V DC operation. The esserbus alarm transponder external voltage supply can be monitored during operation. The EOL-I terminating device (Part No. 808626) must be used for standard-compliant monitoring of detector zone inputs. The EOL-O (Part No. 808624) must be used for standard-compliant monitoring of connected alarm signaling devices.

For connection of special detectors and associated reset functions with evaluation of pre-alarm, fault and alarm. The transponder module can be adapted to the different reset behaviour of the connected special detectors. The inputs and outputs of the transponder can be linked together in such a way that switching on or resetting a signal input leads to short-term activation of the reset input of the special detector. In order, to support various special detectors, the inputs of the transponder can be programmed with a suppression time of up to 255 seconds at reset.

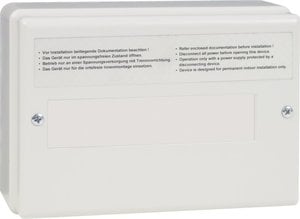

The interface connects max. 2 industrial detectors from the UniVario product range. These detectors are supplied with energy via the 9 V DC group voltage input. For meeting the standard requirements of monitoring, an EOL-UV terminal element is connected to the detector base of the UniVario detector. The interface requires external voltage supply. Additionally, two optionally monitored relay outputs are available.

Terminating device for the monitoring of standard inputs when using esserbus transponders (Part No. 808623, 808622, 808619.10). The zener diode is sealed in the housing of the end-of-line (EOL) module.

The terminating element EOL-UV is used for standard-compliant monitoring of flame and heat detectors of product family UniVario The EOL-UV will be connected to the base of the UniVario detector.

Large distributor housing for esserbus transponders. The following esserbus transponder types can be used: - 2 esserbus transponders each of dimensions (W x H x D) 82 x 72 x 20 mm - 1 esserbus transponder of dimensions (W x H x D) 150 x 82 x 20 mm

UV flame detector for the recognition of fast developing fires with flame formation. Operation, fault and fire statuses are displayed via LEDs on the detector. The supply voltage and the wiring take place directly via the standard detector zone at the esserbus transponder (Part No. 808623.10). Resetting of the detector is also carried out directly via the same esserbus transponder.

UniVario three-channel IR flame detector for recognition of quickly developing fires with flame development. Optical windows of the IR sensors are fully monitored. The detector achieves a high level of resistance towards disturbance variables via three-channel infrared evaluation. Voltage supply and connection occur directly via the standard detector zone at the esserbus transponder (Part No. 808623.10). The detector is also reset directly via the same esserbus transponder.

For detection of open fires with fast development of heat. For usage in polluted industrial environments, interior and exterior areas. Voltage supply and connection occur directly via the standard detector zone at the esserbus transponder (Part No. 808623.10). The detector is also reset directly via the esserbus transponder. Monitoring area 30 m² up to 20° roof pitch and 40 m² over 20° roof pitch, and a max. monitoring height of 7.5 m.

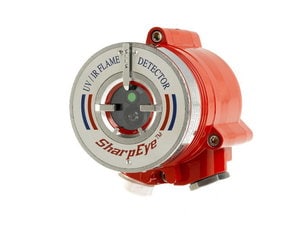

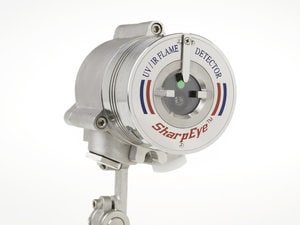

Two-channel UV / IR flame detector for the detection of flames with hydrocarbon involvement, from Hydrogen compounds. Suitable for detection in the UV range at 0.185 to 0.260 μm; and in the IR range at 2.5 to 3.0 μm. Response within 5 seconds at standard fire conditions in the highest sensitivity range adjustment with the maximum range of 15 m.

Two-channel UV/IR flame detector incl. BIT (Built-in-Test) function for the detection of flames with hydrocarbon participation, of hydrogen compounds, of water-oxygen compounds, of metals and inorganic compounds, for detection in the UV range at 0.185 to 0.260 μm and in the IR-Range at 4.4 to 4.6 with the maximum range of 20m.

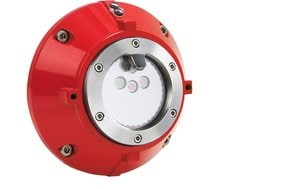

The pressure-proof, fully enclosed infrared flame detector particularly distinguishes itself through reliable operation in difficult conditions. An integrated LED and three relays provide information regarding the state of operation, failure, and alarm. Contamination resistance and heated optics to prevent condensation and formation of ice also allow for external operation. Typical areas of application are turbines, petrochemistry and the automotive industry.Monitoring on the loop and resetting via esserbus transponder 808623. Monitoring of a conventional line via the same transponder. This device requires a separate voltage supply of 24 V DC.

The pressure-proof, fully enclosed combined ultraviolet/infrared flame detector enables UV and IR sensors to monitor the same detection zone with a visual angle of 90°. Triggering occurs only by activation of the IR and UV sensors. A LED provides information regarding the state of operation, failure and alarm. Three relays (fire, failure and additional alarm) are integrated for connection to a fire detection system. Contamination resistance and heated optics to prevent condensation and formation of ice also allow for external operation. Typical areas of application are turbines, munitions depots, natural gas depots and aircraft hangars. Monitoring on the loop and resetting via esserbus transponder 808623. Monitoring of a conventional line via the same transponder. This device requires a separate voltage supply of 24 V DC.

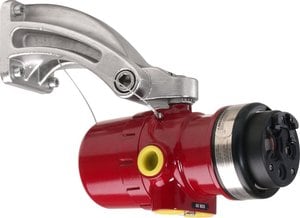

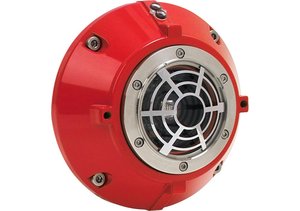

The pressure-proof, fully enclosed multispectrum infrared (MIR) flame detector particularly distinguishes itself through reliable operation in difficult conditions. It provides unsurpassed detection of fires from light to heavy hydrocarbon fuels combined with the highest degree of false alarm rejection. The detector has Division and Zone explosion-proof ratings and is suitable for use in indoor and outdoor applications. The X3301 contains three IR sensors with their associated signal processing circuitry. An integrated LED and three relays provide information regarding the state of operation, failure, and alarm. Contamination resistance and heated optics to prevent condensation and formation of ice also allow for external operation. Typical areas of application are turbines, petrochemistry and the automotive industry. Monitoring on the loop and resetting via esserbus transponder 808623. Monitoring of a conventional line via the same transponder. This device requires a separate voltage supply of 24 VDC.

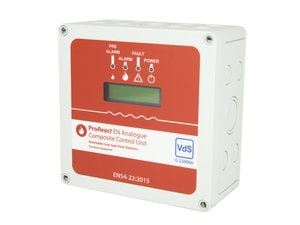

The resettable linear heat detector LHD-PACC has separate relay outputs for pre-alarm, fire alarm and system fault for triggering detector zones on an alarm transponder 808623.40. Due to the differentiated ambient temperature compensation, the window of the set alarm temperature balanced and alarm temperature accuracy maintained. The system is resettable after an overheating or fire condition, if the monitoring sensor cable is not temperature above the maximum recoverable temperature, or mechanically damaged. The Monitoring of the sensor line is carried out via the termination module PACC art. no. 762292 (not in scope of delivery), in which reference measuring resistors for line monitoring are integrated.

The linear smoke detector with a flame resistant ABS plastic housing in compliance with EN 54-12 consists of detector, operating and control unit. The connection to the esserbus and the resetting is carried out via the esserbus transponder 808623.This device requires an external voltage supply of 24 V DC for the galvanic separation of D.C. voltage potentials and the voltage converter Part No. 781337 is to be used in order to avoid ground faults. The LRMX has a range of 40 m using one single reflector. For longer ranges you have to consider the reflector set for the corresponding range enhancement (Part No. 761401.10 or 761402.10). Another alternative is the Nano coated reflector (Part No. 761411, 761412 or 761413) or with additional mounted heating (Part No. 761421 [up to 80 m] or 761422 [up to 100 m]) for applications in heavy environment conditions.

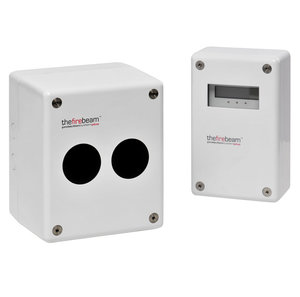

The self-aligning linear smoke detector Fireray ONE consists of the detector unit and a prism reflector. Connection to the loop and resetting are carried out via the esserbus transponder (Part No. 808623.40). The detector unit contains the infrared transmitter and receiver and operates at a range of 5 to 50m when using the prism reflector. The Fireray ONE is mounted at least 0.3 m below the ceiling and its reflector with the same distance from the ceiling opposite. Via the control panel integrated in the detector unit, a visible laser is aligned with the prism reflector and, at the push of a button, the linear smoke detector aligns itself. Everything can be done by one person alone without any special tools. Integrated Light Cancellation Technology™ prevents false alarms that can be generated by sunlight and artificial light sources. Building Movement Tracking™ provides continuous alignment as the building moves or warps due to temperature changes.

As 761416, but with 4 prisms. The self-aligning linear smoke detector Fireray ONE consists of the detector unit and 4 prism reflectors. Connection to the loop and resetting are carried out via the esserbus transponder (Part No. 808623.40). The detector unit contains the infrared transmitter and receiver and operates at a range of 5 to 120 m when using the prism reflector.

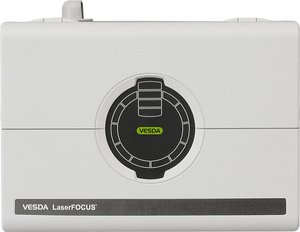

Active stand-alone detection system based on laser technology for the early detection of fires in small areas. The actuation on the loop and the resetting function is carried out via the esserbus transponder (Part No. 808623). Actuation on a conventional line is carried out via the same transponder. The device requires a separate voltage supply of 24 V DC.

The esserbus transponder functions as a device on the multi-functional primary line. The connection of four zones with automatic standard detectors, manual call points (non-addressable) as well as special detectors is possible. In addition, two programmable relay outputs are also available. Both relay outputs of the transponder may be used to reset a connected third-party detector. The reset function relates to the corresponding special detector, e.g. by switching the appropriate input to GND or by a short interruption of the detectors supply voltage. Therefore, the control mode >Reset-Relay< as well as the desired relay operation mode (normally closed or open) must be configured with the programming software tools 8000 from V1.15 and above. The relay output will be activated for the selected reset time (1 to 14 seconds) if the assigned input (G1 for relay 1/G2 for relay 2) of the transponder is reset. Refer to the detectors manual for the required reset time.Monitoring via the EOL terminating devices (Part No. 808624/808626) is required for the connection of fire detectors and for the controlling of alarm signaling devices. The enclosed resistors can be used to connect the floating contacts. The esserbus alarm transponder requires an external voltage supply for operation of 4 monitored inputs. An optional Voltage Converter (Part No. 781336) is also required for 12 V DC operation. The esserbus alarm transponder external voltage supply can be monitored during operation. The EOL-I terminating device (Part No. 808626) must be used for standard-compliant monitoring of detector zone inputs. The EOL-O (Part No. 808624) must be used for standard-compliant monitoring of connected alarm signaling devices.

The pressure-proof, fully enclosed infrared flame detector particularly distinguishes itself through reliable operation in difficult conditions. An integrated LED and three relays provide information regarding the state of operation, failure, and alarm. Contamination resistance and heated optics to prevent condensation and formation of ice also allow for external operation. Typical areas of application are turbines, petrochemistry and the automotive industry.Monitoring on the loop and resetting via esserbus transponder 808623. Monitoring of a conventional line via the same transponder. This device requires a separate voltage supply of 24 V DC.

Two-channel UV / IR flame detector for the detection of flames with hydrocarbon involvement, from Hydrogen compounds. Suitable for detection in the UV range at 0.185 to 0.260 μm; and in the IR range at 2.5 to 3.0 μm. Response within 5 seconds at standard fire conditions in the highest sensitivity range adjustment with the maximum range of 15 m.

Two-channel UV/IR flame detector incl. BIT (Built-in-Test) function for the detection of flames with hydrocarbon participation, of hydrogen compounds, of water-oxygen compounds, of metals and inorganic compounds, for detection in the UV range at 0.185 to 0.260 μm and in the IR-Range at 4.4 to 4.6 with the maximum range of 20m.

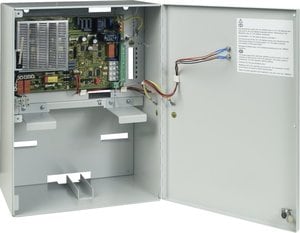

External power supply in a compact metal housing for up to two 12 V/ 24 Ah batteries. This power supply facilitates an uninterruptable supply of power. Integration into the esserbus/esserbus-PLus optional via optional adapter card (Part No. 805684.10) and esserbus Transponder (Part No. 808623). Four floating relay outputs are available for the transmission of disturbances (power failure, ground fault, battery failure and collective fault). External LED display for operation and collective fault on the lockable front door, internal LEDs for detailed recognition of emergency power operation, individual monitoring of battery failure and ground fault.
