Zone Expander RK-ZONE8

RK-ZONE8 | Zone Expander RK-ZONE8
INTEVIO Zone Expander

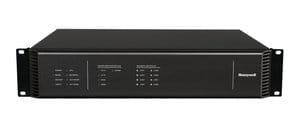

RK-ZONE8 is a zone extension device to expand the number of loudspeaker lines and interfaces on an INTEVIO system. The RK-ZONE8 provides interfaces for 16 loudspeaker lines corresponding to 8 zones), 8 dry contact inputs and 8 dry contact outputs. External power amplifiers must be connected to drive all the loudspeakers.

Functions
RK-ZONE8 has 8 monitored contact inputs that can be linked with a fire alarm system to trigger alert and evacuation messages if a fire occurs. 1 line input is provided to connect with an internal audio source. RK-ZONE8 also has 8 contact outputs that can be used to activate external devices. It has 8 pairs of 100V speaker outputs where each one allows multiple loudspeakers to be connected in parallel. Two audio output ports for audio channel 1 and audio channel 2 can be used to connect with 3rd party power amplifiers or devices. One 24VDC output is provided to power external devices.

Automatic fault diagnosis
RK-ZONE8 has an automatic fault diagnosis function to monitor various types of fault such as main power, backup power, CPU, power amplifier, speaker circuits, dry contact inputs and communication line. All fault information is shown on the LED indicators on the front panel.

All calls possible even if the Controller CPU fails
In the event of a controller CPU malfunction, audio can still be delivered to all the local zones from an external source connected to the line input. This function can reduce potential system downtime and ensures operation in the event of emergency.
Part-No.:
RK-ZONE8

Technical Data

Rated voltage
230 V AC
Rated frequency
Emergency power supply
V DC
Technology
Operating voltage
24 V DC
Operating voltage
21,5 ... 28,5 V DC
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Power consumption
35 W
Rated voltage
Output voltage
V AC
Output current
A
Contact load relay

Data transmission speed
Transmission distance
Transmission range
80 Hz ... 18.000 Hz
Load impedance
Channel separation
dB
Harmonic distortion at nominal level
Sensitivity
mV
Sound level
dB
Impedance
10,000 Ω
Fiber
Ambient temperature
10 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Air humidity
Air humidity
Type of protection
Housing
Color

Mounting
Weight
Weight
approx. 7.9 kg (net)

approx. 10,7 kg (gross weight)
Dimensions
W: 482 mm H: 88 mm D: 407 mm

W:580 mm H: 235 mm D: 552 mm (Packing)

Declaration of Performance

Product Data Sheet

Version: 2020-04

Language:
English
Doc extension:
pdf
