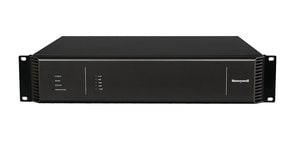

INTEVIO 500W Class-D Power Amplifier
RK-AMP500 supports balanced/unbalanced audio inputs and 100V speaker outputs. It also has a 100V audio input port to connect with the output from other amplifiers so that the output power can be increased easily. A contact output is provided to send out the fault status to a third-party ystem should a fault be detected. Through the RJ45 port, RK-AMP500 receives the audio signal and control signal from the controller RK-MCU or RK-ZONE8 and sends back the fault status.

Description
RK-AMP500, 500W Digital Power Amplifier, is used to amplify the audio signal to drive loudspeakers. It is reliable, efficient and light-weight. Automatic fault detection and self-protection RK-AMP500 can self-protect from overheating, overcurrent, overvoltage, undervoltage, overload or short circuit. For example, when the internal temperature reaches its critical limit, the overheat protection circuit will shut down the power amplification module and activate the protection indicator light on the front panel. RK-AMP500 can detect power supply errors automatically during operation. The built-in fuse will provide overcurrent protection to the main power supply. In the event of a main power supply failure, the backup power (24V DC) is activated
Part-No.:
RK-AMP500

Technical Data

Rated voltage
230 V AC
Rated frequency
Emergency power supply
V DC
Technology
Operating voltage
24 V DC
Operating voltage
21,5 ... 28,5 V DC
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Power consumption
W
Rated voltage
Output voltage
70/100 V AC
Output current
A
Contact load relay

Data transmission speed
Transmission distance
Transmission range
80 Hz ... 18.000 Hz
Load impedance
Channel separation
dB
Harmonic distortion at nominal level
Sensitivity
mV
Sound level
dB
Impedance
Ω
Fiber
Ambient temperature
10 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Air humidity
Air humidity
Type of protection
Housing
Color

Mounting
Weight
Weight
approx. 11,2 kg (netto)

approx. 13,8 kg (gross weight)
Dimensions
W: 482 mm H: 88 mm D: 407 mm

W:580 mm H: 235 mm D: 552 mm (Packing)

Declaration of Performance

Product Data Sheet

Version: 2020-04

Language:
English
Doc extension:
pdf
