Ethernet Touch Call Station

583527 | Ethernet Touch Call Station

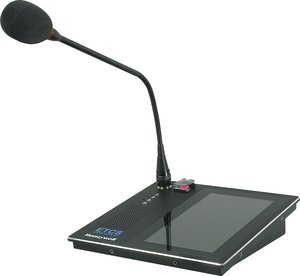

ETCS adopts 7’ touch screen for display and operation which provides a user-friendly interface. 4 bi-color LEDs are used for status indications which include microphone fault indication, system fault indication and connection states of two redundant cables. A red button with cover can be configured for emergency announcement. The gooseneck microphone is replaceable and monitored by ETCS. The loudspeaker can be used for pre-listening audio locally and intercom between the call stations.

ETCS is prepared for redundant cable connection to the Ethernet network. It can be powered by PoE devices through the Ethernet cable or with a power adapter. USB stick can be connected to ETCS to make it easy to play external audio files. ETCS provides an external audio input and output which can be used for connecting audio devices such as CD players. If more keys and/or LEDs are needed, it is possible to add up to three digital key modules (DKM plus, 583526).

ETCS can monitor the microphone and cables permanently. It can also be monitored and configured via the network. It supports multi-language display and the languages can be switched dynamically without resetting the device. It also supports playback the recent call quickly. There are three types of user permissions which can provide different layouts and operations for each user. Up to 27 h. speech or audio can be saved and played locally. Two icons are used to indicate if there is any call been activated or system fault been occurred. Active call list, system fault list and recent call list can easily be checked in any page.

ETCS supports manual calls or pre-defined calls or schedule calls as home page. For manual calls, after selecting the target zones and/or groups, four different audio sources can be selected which include USB stick audio, local storage audio, network audio and live announcement. For pre-defined calls, when the call is activated, it will directly play pre-recorded messages on target zones/groups which are all configured in advance by configuration tool. The call volume can be adjusted during the calls. For schedule calls, after configuring the call parameters and playback time, it will directly start at the specified time.

Part-No.:
583527

Features

  • 7’ touch screen and user friendly interface
  • 4 bi-color LEDs for status indication
  • A red button with cover for emergency announcement
  • Replaceable electret gooseneck microphone with uni-directional pattern
  • Loudspeaker for pre-listening audio locally and intercom between the call stations (ETCS and DCS series)
  • High failure safety due to redundant transmission route
  • Network cable via Ethernet
  • Powered by PoE devices or external power adapter
  • USB stick can be connected to play audio files
  • Additional audio input/output for audio devices
  • Max 3 key modules (DKM plus) which has 18 keys and 18 LEDs each can be extended
  • Permanent monitoring of the microphone and cables
  • Remote monitoring and configuration via the network
  • Support multi-language display
  • Three types of user permissions for different layouts and operations
  • Speech or audio memory up to 27 h.
  • Active call list, system fault list and recent call list can easily be checked in any page
  • Support manual calls, pre-defined calls and schedule calls which can be set as home page
  • Volume can be adjusted during the calls

Technical Data

Rated voltage
V AC
Input-Clipping
Verzerrung bei -3dB unter Nennleistung (ohmsche Last)
Indication Output voltage
Alle Kanäle auf Batterienennspannung geladen
Alle Kanäle werden mit Netznennspannung geladen
Betriebsarten
Frequency
Versorgungsspannung_a
Eigenschwingungsfrequenz im Ruhezustand
Effizienz bei maximaler Last
Eingangsimpedanz (symmetrisch)
Eingangsempfindlichkeit
Spannungsverstärkung
Maximale Tragfähigkeit
Verzerrung bei Nennleistung (ohmsche Last)
Frequenzgang bei Nennleistung
Vorgang Klasse D
Temperaturkompensationsfaktor für Batterieladegerät
Schutz vor tiefer Batterieentladung
Starten des Ladegeräts
Impedanz der Batteriequelle
Strombegrenzung des Batterieladegeräts
Kapazität der ventilgeregelten Blei-Säure-Batterie
Zulassung/Zertifizierung VDE, Semko (EN 60934)
Isolationswiderstand
Stehspannung Prüfspannung
Shutdown
Operating life
Kontrolllampe
Rated current
Signal Rausch Verhältnis
Frequenzbereich_fr
kHz
Leitungsspannung
Lautsprecher_Line_Modul
Spitzenspannungswiderstand
max_Schaltkontaktstrom
max_Schaltkontaktspannung
Lastimpedanz min.
SNR
THD
max_Ausgangspegel_FR
Audio Ausgangskanäle
Ausgabetype
Max. Power per module
Audio latenzy
Output channels
Audio Transmission Format
Ethernet
Output impedance
Frequency response
Nominal output level
Audio output:
Interference Voltage DistanceLine
Interference voltage ratioMicrophone
frequency response line
frequency response microphone
Nominal line input level
Nomminal input levvel microphone
audio input channels
Short-circuit proof against + 24 V
load current per output
input resistance
input voltage logical 0
input voltage 1
Input voltage
audio storage
Encoder/Decoder
Sampling rate
Voltage supply
Power consumption
Max. external voltage
V DC
Voltage of loudspeaker output
Max. number of lines per moduel
Max Power per line
Max. number of modules per INC
Operation temperature
Channel separation
Distortion factor @ 1 kHz
Approval
Efficiency
Signal to noise ratio
Input level
Output power *8
Current (1 kHz sinus/1 min.) @ 24 V DC *7
Rated current @ 230 V AC *6
Rated current @ 24 V DC*6
Rated frequency
Emergency power supply
V DC
Technology
Operating voltage
V DC
Operating voltage
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Power consumption
6 W
Rated voltage
Output voltage
V AC
Output current
A
Contact load relay

Data transmission speed
Transmission distance
Transmission range
0 Hz ... 20 Hz
System input impedance
Channel separation
dB
Harmonic distortion at nominal level
Sensitivity
mV
Sound level
dB
Impedance
Ω
Fiber
Ambient temperature
-5 °C ... 45 °C
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Color
black, similar to RAL 9005

Mounting
Weight
Weight
approx. 1,65 kg

Dimensions
W: 200 mm D: 200 mm L: 49,4 mm

L: 400 mm Length goose neck microphone

Declaration of Performance
Output current (idle)
Output current (alarm)
Emergency power supply

Accessories

583526 Digital key module DKM plus for ETCS

583396 Power over ethernet (PoE) switch

Scope of delivery

A 3 m long CAT5 cable for connecting the digital communication unit to a wall jack, is included in delivery.
