6 W cabinet loudspeaker

6 W cabinet loudspeaker

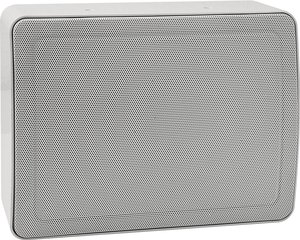

This loudspeaker is a high-performance 6 W voice alarm cabinet loudspeaker. It provides a broad frequency response range. Low distortion and high sound pressure level for accurate and intelligible broadcast of evacuation messages and high quality sound reproduction. It is ideal for sound distribution in various types of commercial buildings. Its low-profile white color design blends easily with most interiors in locations such as hotel, conference rooms, cinemas, factories and exhibitions.

Part-No.:: 582426

Technical Data

Rated Power: 6 W
Rated power handling
Transformer power taps: 6 / 3 / 1,5 W (100 V), 3 / 1,5 / 0,75 W (70 V)
Rated impedance: 1,67 / 3,3 / 6,67 kΩ
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double): dB
SPL Pmax / 1 m: dB
SPL Pmax / 1m (Double): dB
Sensitivity EN 54-24, 1 W / 1 m: 92 dB
Sensitivity EN 54 (double): dB
Sensitivity EN 54-24 max (double): dB
Sensitivity: dB
Sensitivity EN 54-24, max 1 m: 99,5 dB
Transmission range: 150 Hz ... 16000 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance: Ω
Sensitivity: mV
Sensitivity
Dispersion angle
Ambient temperature: -25 °C ... 55 °C
Storage temperature: -40 °C ... 70 °C
Air humidity: < 95 %
Air humidity
Type of protection
Housing
Material: ABS
Color: White, similar RAL 9010

Weight
Weight: approx. 1,63 kg

Cut-out size
Connection lead
Dimensions: W: 260 mm D: 88 mm L: 200 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval

Downloads

Produktdatenblatt

Ausschreibungstext

Product Data Sheet

Version: 2024-04
