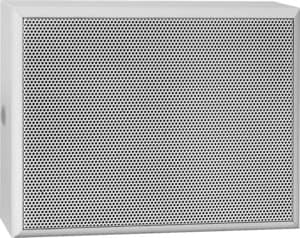

2 x 6 W, 2 x 4" AB cabinet loudspeaker EN 54, MDF

582422 | 2 x 6 W, 2 x 4

The A/B line cabinet loudspeaker for voice alarm systems is certified in accordance with EN 54-24 and offers maximum safety for voice alarm projects.

The WA-AB 06-100/T-EN 54 V features two mutually independent chassis and two 100 V output transformers. It allows for cost-effective supply via two separate (A/B) lines. In the event of a failure of one line, the loudspeaker redundancy allows continued allert of the respective area. For every installation position, the presence of an A line as well as of a B line provides redundancy. The high density MDF wood enclosure (in white) ensures low-resonance sound quality. This version is ball impact resistant and suitable for wall or ceiling mounting. The IP 54 rating guarantees operational safety even under harsh environmental conditions. Both A/B-line loudspeakers respectively feature 2 integrated ceramic terminals and 2 thermal fuses. The chassis are impregnated against moisture.

Part-No.:
582422

Technical Data

Rated Power
12 W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double)
dB
SPL Pmax / 1 m
dB
SPL Pmax / 1m (Double)
dB
Sensitivity EN 54-24, 1 W / 1 m
89,5 dB
Sensitivity EN 54 (double)
92,6 dB
Sensitivity EN 54-24 max (double)
100,1 dB
Sensitivity
dB
Sensitivity EN 54-24, max 1 m
97 dB
Transmission range
227 Hz ... 14600 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance
Ω
Sensitivity
mV
Sensitivity
Dispersion angle
Ambient temperature
-20 °C ... 80 °C
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Material
Color
white, similar to RAL 9010

Weight
Weight
approx. 2,3 kg

Cut-out size
Connection lead
Dimensions
W: 252 mm H: 192 mm D: 82 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval
