20 W spherical speaker EN 54, ABS

20 W spherical speaker EN 54, ABS

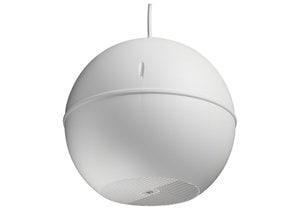

The DL-54 K 20-165/T-EN with an impact-resistant, UV-resistant ABS-housing in white (UL94 V0) features a corrosion-resistant 165-mm broadband loudspeaker chassis with ceramic terminal and thermal fuse. The spherical loudspeaker certified according to EN 54-24 meets the highest safety requirements of IP 35 (IEC 529). The power setting of DL-K 20-165 / T can be easily adjusted by turning the screw at the top of the ball. The low-resistance mode is also possible.

Part-No.:: 582461

Technical Data

Rated Power: 20 W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double): dB
SPL Pmax / 1 m: dB
SPL Pmax / 1m (Double): dB
Sensitivity EN 54-24, 1 W / 1 m: 91,5 dB
Sensitivity EN 54 (double): dB
Sensitivity EN 54-24 max (double): dB
Sensitivity: dB
Sensitivity EN 54-24, max 1 m: 104,5 dB
Transmission range: 128 Hz ... 17900 Hz
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance: Ω
Sensitivity: mV
Sensitivity
Dispersion angle
Ambient temperature: -20 °C ... 80 °C
Storage temperature
Air humidity
Air humidity
Type of protection
Housing
Material
Color: white, similar to RAL 9010

Weight
Weight: approx. 2,2 kg

Cut-out size
Connection lead
Dimensions: Ø: 260 mm D: 245 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval

Scope of delivery

Pre-mounted, 5-core connection cable, length 4,50 m

Including canopy
