Features
- High IP protection up to IP 55
- Plug-in terminals
- Standard keys with double function: Open, reset
- Service key with triple function: Test, open, reset
- "Out of Order" marking an inoperative detector by turning the enclosed operating front foil

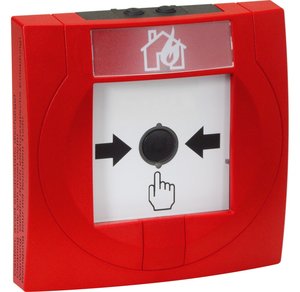

Large Conventional MCP Ex (i), red with glass pane
Standard large intrinsically safe MCP, consisting of electronic module and detector housing, for connection to a conventional zone, especially for use in hazardous areas. Suitable due to the high IP protection up to IP 55 for use in damp rooms.
- Part-No.:
- 804920.EX
- Approval:
- VdS
Technical Data
- Common technical data:
- Leistungserklärung
- Rated voltage
- V AC
- Rated frequency
- Rated current
- Output current
- Battery capacity
- Operating voltage
- 8 ... 30 V DC
- Operating voltage
- V DC
- Operating voltage
- Quiescent current
- Betriebsspannung (EN 54-17)
- Betriebsspannung Selbsttest
- Lichtquelle
- Leuchtfarbe
- Luftgeschwindigkeit
- Lüfterlautstärke
- Ruhestrom @ BMZAkku
- Anwendungstemperatur Selbsttest
- Quiescent current @ 9 V DC
- 0 μA
- Quiescent current @ 12 V DC
- Quiescent current @ 19 V DC
- μA
- Quiescent current @ 24 V DC
- Quiescent current @ FACP battery
- Quiescent current @ FACP battery
- Quiescent current
- μA
- Current consumption
- Current consumption
- Current consumption @ 12 V DC
- Current consumption @ 24 V DC
- Starting current
- mA
- Current consumption in the case of failure
- mA
- Current consumption testmode
- mA
- Alarm current
- Alarm current
- Alarm current @ 9 V DC
- 9 mA
- Alarm current @ 12 V DC
- Alarm current @ 24 V DC
- mA
- Alarm current @ 24 V DC
- Alarm current w/o communication curtain
- mA
- Power consumption
- Current consumption for ext. devices
- A
- Testing capacity
- Battery charging
- Heat detector response threshold
- Load factor
- Contact load relay
- Contact load
- Sound level @ 12 V DC
- Sound level @ 24 V DC
- Sound level
- No. of detector/zone
- Circuit
- Display
- Operation indicator
- Alarm display
- LED, red
- Fault display
- Frequency of flash
- Lighting energy
- Flash color
- Luminous intensity
- Signal flashing lamp
- Range
- Connection terminal
- max. 1,5 mm² (AWG 30-14)
- CO pre-alarm
- ppm
- CO alarm
- ppm
- Area to be monitored
- Height to be monitored
- Air velocity
- Sensitivity
- Application temperature
- -20 °C ... 70 °C
- Ambient temperature
- Storage temperature
- -30 °C ... 75 °C
- Air humidity
- < 95 %
- Air humidity
- Type of protection
- IP 44, IP 55 with shrink sleeve
- Protection class
- Ex. protection
- Ex ib II C T4 Gb
- Category
- II2G (with Ex barrier Part No. 764744/804744)
- Housing
- PC ASA plastic
- Material
- Installation
- Signal Range
- Mounting height wall
- Room width
- Category ceiling
- Mounting height ceiling
- Room diameter
- Color
- red, similar to RAL 3020
- Weight
- approx. 236 g (in housing)
- Weight
- Optisches_Signalbild
- Lebensdauer_optisch
- Drehfrequenz
- Abmessungen
- Content
- Cable length
- m
- Maximum sensor length
- m
- Detector specification
- DIBt approval
- Specification
- Cable diameter
- mm
- Cable entry
- Maximum tube length
- Dimensions
- W: 133 mm H: 133 mm D: 36 mm
- Length
- Declaration of Performance
- DoP-21417141219
- Konformität
Additional information
For operation with standard groups ex-barrier Part No. 764744 must be used in zone 1 and zone 2!
Scope of delivery
1 x Glass pane 704910
1 x Key 769910
1 x Manual call point housing, red
1 x IP 55 shrink sleeve
