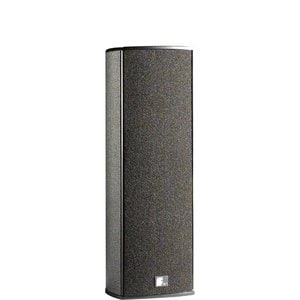

Linea LEN-60 EN 54-24, black

Linea LEN-60 EN 54-24, black

Passive 100 V loudspeaker, with weatherproof aluminium housing, designed for use with voice alarm systems - certified according to EN 54-24, Type B, equipped with two high-quality 4” drivers with treated cones for optimum efficiency in speech and voice alarms.

Part-No.:: 582652.B

Features

EN 54-24 certified, 100 V loudspeaker for use with voice alarm systems
suitable for both indoor and outdoor use
exceptionally even sound dispersion
SIDE LOBE FREE – passive realization
equipped with high performance speakers
excellent speech intelligibility and sound quality
a long reach
weatherproof without requiring additional protection (protection class IP54 in accordance with IEC 529 / EN 60529)
ball impact resistant front grille made from galvanised sheet steel

Technical Data

Rated Power: W
Rated power handling
Transformer power taps
Rated impedance
Kennschalldruck 1W / 1m
Kennschalldruck 1W / 4m
Kennschalldruck 6W / 4m
SPL 1 W / 1 m (Double): dB
SPL Pmax / 1 m: 112 dB
SPL Pmax / 1m (Double): dB
Sensitivity EN 54-24, 1 W / 1 m: dB
Sensitivity EN 54 (double): dB
Sensitivity EN 54-24 max (double): dB
Sensitivity: dB
Sensitivity EN 54-24, max 1 m: dB
Transmission range
Sensitivity EN 54-24 1 W / 1 m_comp
Sensitivity EN 54-24, 1 W / 4 m_comp: 83 dB
Sensitivity EN 54-24 6 W / 4 m_comp
Impedance: Ω
Sensitivity: mV
Sensitivity
Dispersion angle: 130° (H) x 25° (V) nominal; 360° (H) x 90° (V) @500 Hz; 190° (H) x 40° (V) @ 1000 Hz; 120° (H) x 25° (V) @ 2000 Hz; 95° (H) x 13° (V) @ 4000 Hz
Ambient temperature
Storage temperature
Air humidity
Air humidity
Type of protection
Housing: weatherproof aluminium housing, powder coated, steel bracings
Material
Color: black, similar to RAL 9005, powder-coated

Weight
Weight: approx. 7,5 kg

Cut-out size
Connection lead
Dimensions: W: 130 mm H: 640 mm D: 120 mm


SPL Pmax / 1m
Rated voltage
Output power *8
Approval

Accessories

582614.B Wall mount WLX-100, black

Downloads

Produktdatenblatt

Ausschreibungstext

Product Data Sheet

Version: 2024-04

Language:: English
Doc extension:: pdf
