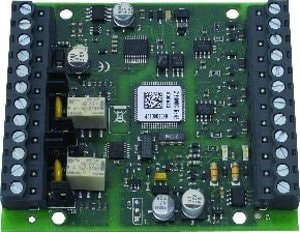

esserbus alarm transponder, 4 IN/2 OUT with isolator

808623 | esserbus alarm transponder, 4 IN/2 OUT with isolator

The esserbus transponder functions as a device on the multi-functional primary line. The connection of four zones with automatic standard detectors, manual call points (non-addressable) as well as special detectors is possible. In addition, two programmable relay outputs are also available.

Both relay outputs of the transponder may be used to reset a connected third-party detector. The reset function relates to the corresponding special detector, e.g. by switching the appropriate input to GND or by a short interruption of the detectors supply voltage. Therefore, the control mode >Reset-Relay< as well as the desired relay operation mode (normally closed or open) must be configured with the programming software tools 8000 from V1.15 and above. The relay output will be activated for the selected reset time (1 to 14 seconds) if the assigned input (G1 for relay 1/G2 for relay 2) of the transponder is reset. Refer to the detectors manual for the required reset time.Monitoring via the EOL terminating devices (Part No. 808624/808626) is required for the connection of fire detectors and for the controlling of alarm signaling devices. The enclosed resistors can be used to connect the floating contacts. The esserbus alarm transponder requires an external voltage supply for operation of 4 monitored inputs. An optional Voltage Converter (Part No. 781336) is also required for 12 V DC operation. The esserbus alarm transponder external voltage supply can be monitored during operation. The EOL-I terminating device (Part No. 808626) must be used for standard-compliant monitoring of detector zone inputs. The EOL-O (Part No. 808624) must be used for standard-compliant monitoring of connected alarm signaling devices.



  • Only one loop address is needed per transponder
  • Digital inputs
  • Integrated loop isolator
  • Conventional connection of standard fire detectors and signaling devices
  • Loop monitoring in compliance with EN 54-13
  • Integrated loop isolator
  • Programmable relay outputs
  • Programmable relay reset function
  • Max. 100 transponders per FACP
  • Max. 31 transponders per loop
  • Max. 127 detector zones per loop

  • Detector numbers per zone input of the transponder:
  • Max. 30 conventional detectors (without SOC)
  • Max. 10 conventional detectors (with SOC)
  • Max. 10 Manual call points (MCP)
  • Max. 10 Technical Alarm Modules (TAM)
  • Max. 5 audible alarm devices per each output (observe calculation table in tools 8000)

Technical Data

Rated voltage
Rated voltage
Operating voltage
10 ... 28 V DC
External power supply
Rated frequency
Rated current
Quiescent current
Quiescent current @ 12 V DC
approx. 12 mA
Quiescent current @ 19 V DC
Alarm current @ 12 V DC
Alarm current
Current consumption
max. 120 mA @ 12 V DC
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Contact load relay
30 V DC / 1 A
No. of detector/zone
Operation indicator
Alarm display
Connection terminal
Application temperature
Ambient temperature
-10 °C ... 50 °C
Storage temperature
-25 °C ... 75 °C
Air humidity
< 95 %
Air humidity
Type of protection
IP 40 (in housing)
approx. 28 g
W: 82 mm H: 72 mm D: 20 mm
Declaration of Performance


788603.10 Module housing for snap-on mounting rail

788600 Housing surface mount, gray

788650.10 Housing surface mount, white

788601 Housing flush mount, gray

788651.10 Housing flush mount, white

781336 DC/DC converter output voltage

808624 EOL-O Terminating device

808626 EOL-I Terminating device

Scope of delivery

Installation accessory pack
