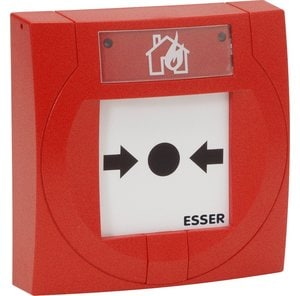

IQ8MCP compact FM, small, red with resettable element

804973.IN | IQ8MCP compact FM, small, red with resettable element

As 804971.IN but with plastic triggering element, which supports easy reset after an alarm has been triggered without having to replace the broken element (glass pane).

Typically applied in nursery, clean rooms as for example in food processing industries.

Part-No.:
804973.IN
Approval:
VdS, FM

Features

  • Slimline design
  • Low power consumption
  • Plug-in connection terminals (two direction)
  • Optional terminal terminals
  • Triple key function (test, open, reset)
  • Detectors that are not ready for operation can be marked with the "Out of order" label by reversing the enclosed glass pane

Technical Data

Common technical data:
Rated voltage
V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage
8 ... 42 V DC

Operating voltage
V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC
μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
45 μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current
μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current
mA
Current consumption in the case of failure
mA
Current consumption testmode
mA
Alarm current
Alarm current
Alarm current @ 9 V DC
mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC
mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain
18 mA
Power consumption
Current consumption for ext. devices
A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level
dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone
max. 127 MCP per loop
Circuit
Display
Operation indicator
LED, green
Alarm display
red LED and yellow actuation indicator
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal
max. 2.5mm² (AWG 26-14)
CO pre-alarm
ppm
CO alarm
ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature
-20 °C ... 70 °C
Ambient temperature
Storage temperature
-30 °C ... 75 °C
Air humidity
Air humidity
Type of protection
IP 43 (in housing)

Protection class
Ex. protection
Category
Housing
ASA plastic
Material

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color
red, similar to RAL 3020

Weight
approx. 110 g
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length
m
Maximum sensor length
m
Detector specification
EN 54-11, type A
DIBt approval
Specification

Cable diameter
mm
Cable entry
Maximum tube length
Dimensions
W: 88 mm H: 88 mm D: 21 mm

W:88 mm H: 88 mm D: 57 mm (with surface mount housing)
Length
Declaration of Performance
Konformität

Accessories

704980 Surface mount housing

Additional information

If the glass pane is replaced with the optionally available plastic pane with reset function, the MCP can be reset from the outside using the key.

For the surface mounting of the MCP the surface mount base Part No. 704980 must be ordered separately, if the cable wasn't laid about a standard flush mount wall socket.

Type a definition - single action in accordance with EN 54-11 § 3.4.1

(excerpt taken from EN standard):

Manual fire alarm unit, for which the alarm status is automatically set (additional alarm triggering is not required) after the fragile element has been broken or its position has been changed.

Scope of delivery

1 x plastic operating panel, 1 x key, 1 x multilingual paper insert with "Out of Order" pictogram included
