Loop LED remote indicator panel for 32 messages

804791 | Loop LED remote indicator panel for 32 messages

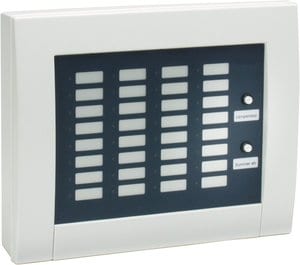

Same as 764790, but with integrated and wired esserbus transponder 32 LEDs for operation as a remote indicating panel for the esserbus. For connection to the esserbus and powered loop in fire alarm systems 8000 and IQ8Control.

Part-No.:
804791
Approval:
VdS

Technical Data

Versorgungsspannung
V
Material
Operation temperature
Tasterbelastung
Operating voltage
10 ... 15 V DC
Operating voltage
V DC
Quiescent current

Quiescent current @ 12 V DC
approx. 1 mA
Quiescent current @ 24 V DC
Alarm current @ 12 V DC
approx. 380 mA (incl. 32 LED & buzzer)
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption for ext. devices
A
Current consumption
mA
Battery capacity
Contact load relay

Display
32 LED, red
Frequency of flash
Hz
Lighting energy
Resolution
Screen diagonal
cm
Data transmission speed
Connection terminal
1.5 mm²
Ambient temperature
-5 °C ... 50 °C
Storage temperature
-25 °C ... 75 °C
Air humidity
< 95 % (non-condensing)
Air humidity
Type of protection
IP 40
Installation
Housing
ABS plastic
Color
white (similar to RAL 9003), front blue (similar to RAL 5003)
Empfohlene_Raumtemperatur
Weight
approx. 1000 g
Weight

Cable length
m
Rückseitige Bodenplatte
mm
Dimensions
W: 270 mm H: 221 mm D: 71 mm


Declaration of Performance
Maximale_Ladung
Temperature range

Additional information

Isolator (Part No. 788612) not included, please order separately.

This indicator panel is not suitable for application as an initial warning device for the fire brigade.

Downloads

Produktdatenblatt
Ausschreibungstext

Product Data Sheet

Version: 2024-03

Language:
English
Doc extension:
pdf
