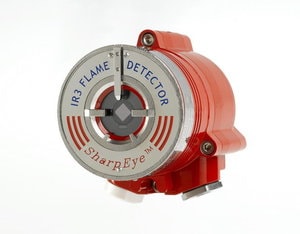

Triple IR (IR3) Flame Detector Ex approved

Features

Long-range monitoring
Automatic self-test
Potential-free relay outputs 5A / 30V/DC or 250V/AC for: Alarm, fault and additional function and aluminium housing with red epoxy Stove enamelling
M25 thread for cable gland
Sensor type: 3-channel infrared sensor

Technical Data

Operating voltage: 18 ... 32 V DC
Contact Ausgänge
Contact Current
Sensoren pro Hub
Sensoren pro Controller
Hubs pro Controller
Angesaugte Lufttemperatur
Länge der Abzweigleitung
Lineare Rohrlänge
Ansaugöffnungen
Operation temperature
Anzahl_der_Relaisausgänge
Indication Output voltage
Nominal frequency: Hz
Rated voltage

Operating voltage: V DC
Operating voltage
Voltage supply
Quiescent current
Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Quiescent current @ 24 V DC
Ruhestrom @ 28 V DC_comp
Quiescent current @ FACP battery
Quiescent current @ FACP battery

Current consumption: 90 mA and 105 mA with window heating (quiescient); 130 mA and 160 mA with window heating (alarm)
Alarmstrom @ 28 V DC_comp
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption
Power consumption @ 5 V DC
Power consumption @ 12 V DC
Power consumption @ 24 V DC
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Alarm current @ 24 V DC
Starting current @ 24 V DC
Starting current
Current consumption in the case of failure
Output current: A
Power consumption
Current consumption for ext. devices: A
Battery capacity
Contact load
Contact load relay
Sensitivity
Sound level
Sound level @ 24 V DC
Display
Frequency of flash: Hz
Lighting energy
Range
Connection terminal
Maximum tube length
Area to be monitored
Height to be monitored
Alignment angle
Unempfindlichkeit gegenüber Gebäudebewegungen
Air velocity
Application temperature
Response temperature
Ambient temperature: -55 °C ... 75 °C
Storage temperature: -55 °C ... 85 °C
Wavelength: nm
Connection
Sampled Air Temperature
Air humidity: < 95 % (non-condensing)
Air humidity
Ex-category: Ex II 2 G D
Ex. protection: Ex db eb op is IIC T4 Gb, Ex tb op is IIC T96°C Db
Type of protection: IP 66 and IP 67 according to EN 60529

Housing
Type
Material

Color
Weight
Weight: approx. 2,8 kg

Luftfeuchtigkeit
Cable length: m
Maximum sensor length: m
Rückseitige Bodenplatte: mm
Detector specification
EC-type examination certificate: IECEx SIR 07.0085X
Specification

Dimensions: W: 90 mm H: 114 mm D: 156 mm


Declaration of Performance
Approval

Additional information

Substance dependent ranges at standard fire conditions and max. sensitivity: n-heptane, petrol: 65 minnalf of 5 sec. Diesel, JP5, kerosene; 45 m within 5 sec. Ethanol, isopropyl alcohol: 40 m within 5 sec. Methanol: 35 m within 5 sec. Methane, LPG: 30 m within 5 sec. Office paper: 10 min and a half within 5 sec. Polypropylene pellets: 5 m within 5 sec.

Scope of delivery

Stainless steel mounting bracket (782441) and plastic rain cover (782442) are included.

Downloads

Produktdatenblatt

Ausschreibungstext
