Detector module 0.5 %/ m Type DM-TP-50

801523.10 | Detector module 0.5 %/ m Type DM-TP-50

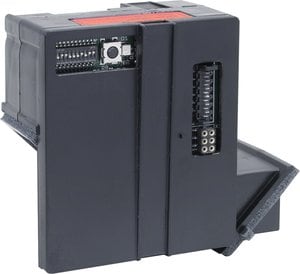

Detector module for application in Titanus Pro Sens EB aspirating smoke detection systems (Part No. 801515.10, 801521.10, 801522.10) with a response sensitivity of 0.5 % light opacity/m.

Early fire detection via HPLS technology. Installation into Titanus Pro Sens EB systems without tools and adjustable via DIL switch on the outside of the detector module. The parameterization option allows sensitivity adjustments for the aspirating smoke detection system.

Part-No.:
801523.10

Features

  • Response sensitivity adjustable at the module
  • Fast commissioning through automatic initializing process
  • Status display for status and fault diagnosis
  • Installation into Titanus Pro Sens EB without tools
  • Air flow monitoring for detecting pipe burst and tube blockage
