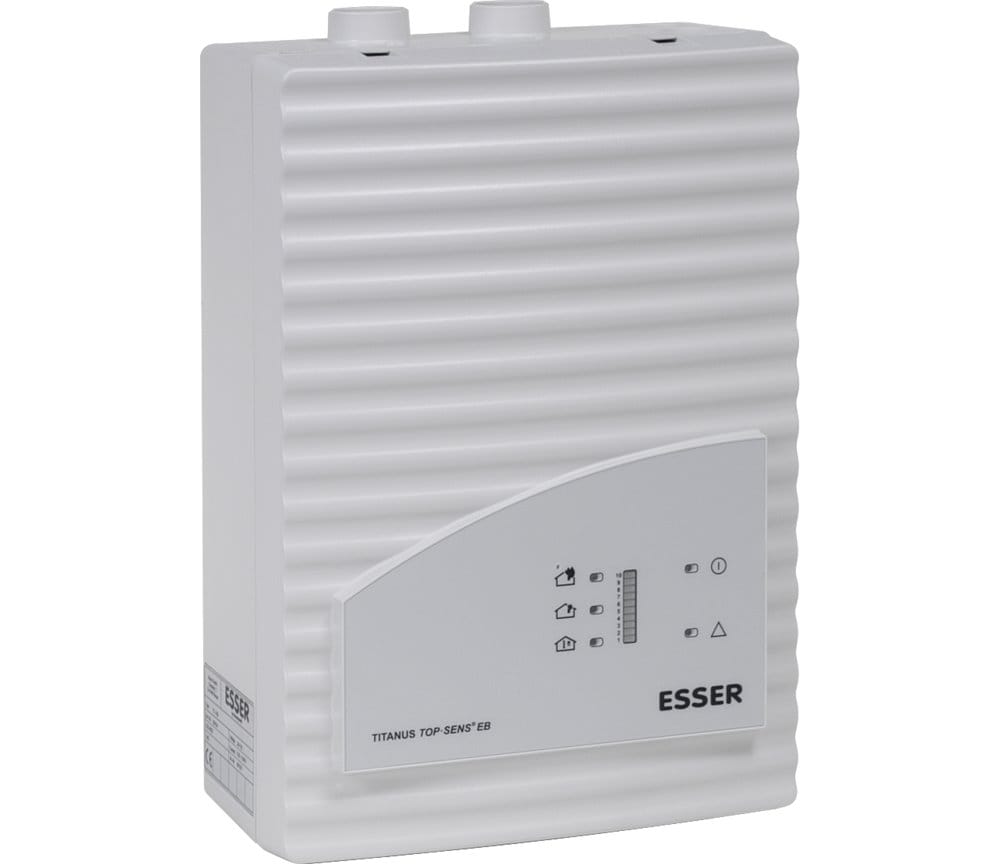

Basic unit TITANUS TOP SENS® EB 1 with silent fan

781531.10.SL | Basic unit TITANUS TOP SENS® EB 1 with silent fan

As 801531.10, but with pre-assembled SL fan for operation in noise-sensitive areas. The SL fan reduces the operating volume of the device to up to 23 dB (A) depending on the ambient conditions.

Basic unit for wall mounting, ready for receiving a detector module DM-TT-xx. It is provided with three alarm levels for information alarm, pre-alarm and main alarm as well as with a bargraph display to indicate the specific smoke density. The TITANUS PRO SENS® EB can be directly connected to the esserbus / powered loop.

The device is supplied with front foil for single-tube operation.

Part-No.:
781531.10.SL

Features

  • Pre-configured for connecting a DM-TP-xx detector module
  • Optical status display for alarm and fault indication at the front foil
  • Extendable for integrating up to two DM-TP-xx detector modules to connect a second tube
  • Ports for two suction tubes with outside diameter of 25 mm
  • Port for air return tube
  • Reduced operating volume up to 23 dB (A) with silencer

Technical Data

Operating voltage
14 ... 30 V DC
Hochgeschwindigkeitsreaktionszeit
Explosionserkennung
Zulassung für explosionsgefährdete Bereiche
Spektrale Empfindlichkeit
Reaktionszeit_a
Empfindlichkeitsbereiche
Erfassungsbereich
Contact Ausgänge
Contact Current
Sensoren pro Hub
Sensoren pro Controller
Hubs pro Controller
Angesaugte Lufttemperatur
Länge der Abzweigleitung
Lineare Rohrlänge
Ansaugöffnungen
Operation temperature
Anzahl_der_Relaisausgänge
Indication Output voltage
Nominal frequency
Hz
Rated voltage

Operating voltage
V DC
Operating voltage
Voltage supply
Quiescent current
Quiescent current @ 9 V DC
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
Quiescent current @ 24 V DC
approx. 260 mA at 9 V fan voltage
Ruhestrom @ 28 V DC_comp
Quiescent current @ FACP battery
Quiescent current @ FACP battery

Current consumption
Alarmstrom @ 28 V DC_comp
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Current consumption
Power consumption @ 5 V DC
Power consumption @ 12 V DC
Power consumption @ 24 V DC
Alarm current @ 9 V DC
Alarm current @ 12 V DC
Alarm current @ 24 V DC
Starting current @ 24 V DC
Starting current
Current consumption in the case of failure
Output current
A
Power consumption
Current consumption for ext. devices
A
Battery capacity
Contact load
Contact load relay
30 V DC/1 A max. 24 W
Sensitivity
Sound level
approx. 45 dB(A) (with sound absorber part no. 801543)
Sound level @ 24 V DC
Display
Frequency of flash
Hz
Lighting energy
Range
Connection terminal
max. 1,5 mm²
Maximum tube length
Area to be monitored
Height to be monitored
Alignment angle
Unempfindlichkeit gegenüber Gebäudebewegungen
Air velocity
Application temperature
Response temperature
Ambient temperature
-20 °C ... 60 °C
Storage temperature
-25 °C ... 65 °C
Wavelength
nm
Connection
Sampled Air Temperature
Air humidity
< 95 %
Air humidity
Ex-category
Ex. protection
Type of protection
IP20

Housing
ABS plastic
Type
Material

Color
white, similar to RAL 9018
Weight
Weight
approx. 1,35 kg

Luftfeuchtigkeit
Cable length
m
Maximum sensor length
m
Rückseitige Bodenplatte
mm
Detector specification
EC-type examination certificate
Specification

Dimensions
W: 200 mm H: 292 mm D: 113 mm


Declaration of Performance
Approval
Systemausgänge
Eingangsspannungsbereich
Maximale Anzahl von Sensoren pro Modul
Stromverbrauch
Ausgang
Temperature range
Max. Temperaturänderung
Relaislast

Additional information

The previously required isolator and the reset PCB is no longer required to be fitted to this detector and is no longer available to order. The detector is now fitted as standard with the esserbus alarm transponder which incorporates all of the functions for which these devices provided.

Scope of delivery

Pre-configured basic device including esserbus transponder and reset PC board as well as the front foil.

Product Data Sheet

Version: 2025-06

Language:
English
Doc extension:
pdf
