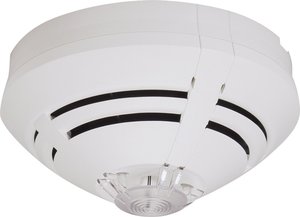

OTblue multisensor fire detector IQ8Quad with isolator

802375 | OTblue multisensor fire detector IQ8Quad with isolator

Multisensor fire detector with integrated optical sensor and heat sensor with enhanced false alarm management. The optical measurement chamber is provided with a patented developed sensor technology using a high-sensitive blue LED (instead of the commonly used red LED in Optical smoke detectors), enabling the detection of open fires, smoldering fires and fires with high heat generation. Especially for open fires, the classical ionization technology implemented in ionization detectors is replaced by the unique detection technology, unlike ionization detectors, this sensor works without a radioactive element which causes problems at the time of refuse disposal. The detector is capable of identifying the TF1 and TF6 test fires described in the EN 54-9:1982 specification. Well suited for sensitive environment, detection of invisible up to large aerosols.

The OTblue multisensor is an intelligent detector with time-related signal analysis, signal correlation of the sensor data, decentralized intelligence, automatic function self-test, CPU failure mode, automatic adaptation to environmental conditions, alarm and operating data memory, alarm indicator and soft-addressing.

The detector is provided with an integrated isolator and a remote indicator can be connected.

Part-No.:
802375
Approval:
VdS

Technical Data

Common technical data:
Leistungserklärung
Rated voltage
V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage
9 ... 42 V DC

Operating voltage
V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC
μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
50 μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
approx. 280 μA
Quiescent current
μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current
mA
Current consumption in the case of failure
mA
Current consumption testmode
mA
Alarm current
Alarm current
Alarm current @ 9 V DC
mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC
mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain
18 mA
Power consumption
Current consumption for ext. devices
A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level
dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone
Circuit
Display
Operation indicator
Alarm display
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal
CO pre-alarm
ppm
CO alarm
ppm
Area to be monitored
110 m²
Height to be monitored
12 m
Air velocity
0 m/s ... 25,4 m/s
Sensitivity
Application temperature
-20 °C ... 50 °C
Ambient temperature
Storage temperature
-25 °C ... 75 °C
Air humidity
< 95 %
Air humidity
Type of protection
IP 40 with base, up to IP 43 with base and option

Protection class
Ex. protection
Category
Housing
Material
ABS plastic

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color
white, similar to RAL 9010

Weight
approx. 110 g
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length
m
Maximum sensor length
m
Detector specification
EN 54-7 /-5 A2 /-17:2005, CEA 4021
DIBt approval
Specification

Cable diameter
mm
Cable entry
Maximum tube length
Dimensions
Ø: 117 mm H: 49 mm (62 mm incl. base)

Length
Declaration of Performance
DoP-20113130701
Konformität

Accessories

767800 Mounting bracket

805590 Standard detector base for IQ8Quad

805591 Detector base with relay contact for IQ8Quad

Additional information

Special colors on demand

The detectors Part No. 802271, 803271, 802371, 803371, 802373, 802374 and 803374 are approved in the scope of the DIBt system authorization for the operation with an Automatic Door System.

To determine the battery capacity of a fire alarm panel, the detector data "Quiescent current @ BMZ battery" can be added.

In order to pass through existing wires, the WAGO grips, e. g. type 243-204 (O 0.5-1 mm) or 273/104 (0.75-2.5 mm2) can be integrated into the detector base. Please use only for commissioning/maintenance of fire detectors from SW version V2.42R006 the programming software tools 8000 from version V1.05.

Product Data Sheet

Version: 2024-03

Language:
English
Doc extension:
pdf
