IP 42 protection for detector base IQ8Quad, flat design

805570 | IP 42 protection for detector base IQ8Quad, flat design

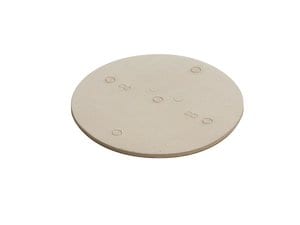

For installation in environments with dust and humidity. The IP protection protects the IQ8Quad detector base against dust and humidity. It increases the protection level to IP 42. For easy mounting to the base, the IP protection is provided with an adhesive film.

Part-No.:
805570
Packing unit:
10 pcs
