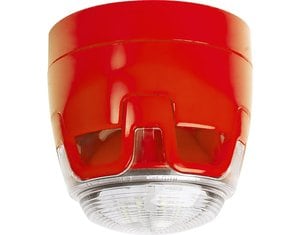

Combination signaling device EN 54-23 cat. W+C, red flash

CWSS-RR-S5 | Combination signaling device EN 54-23 cat. W+C, red flash

Combined acoustic and optical alarm signaling device is EN 54-3 & EN 54-23 compliant, in red housing, and offers a selection of 32 signal tones including the DIN tone and other country-specific tones. All tones comply with EN 54-3. Tone configuration takes place via a 6-pin DIP switch. Up to two different signal tones may be activated. The optical signaling device with red signal lamp is suitable in accordance with EN 54-23 for square signal ranges W-2.4-6.8 and cylindrical signal ranges C-3-8.9 / C-6-8.2. Signaling device with flat base, suitable for wall and ceiling mounting.

To help define your conventional Visual Alarm Devices (VADs) requirements in line with the EN54-23 standard, we have developed an easy to use online guide. Simply enter the room dimensions and ambient light conditions and the guide will help your device selection: https://www.kac.co.uk/device_estimator/

Part-No.:
CWSS-RR-S5
Approval:
VdS

Features

  • EN 54-3 and 54-23 compliant
  • Synchronous sound and flash trigger
  • Volume adjustable to 2 levels at the device
  • C & W category
  • Signal range up to 6.0 m room width for wall mounting
  • Signal range up to 8.9 m room diameter for ceiling mounting

Technical Data

Common technical data:
Leistungserklärung
Rated voltage
V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage
12 ... 29 V DC

Operating voltage
V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC
μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current
μA
Current consumption
Current consumption
Current consumption @ 12 V DC
approx. 63,9 mA (@ DIN tone)
Current consumption @ 24 V DC
approx. 69.9 mA (@ DIN tone)
Starting current
mA
Current consumption in the case of failure
mA
Current consumption testmode
mA
Alarm current
Alarm current
Alarm current @ 9 V DC
mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC
mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain
mA
Power consumption
Current consumption for ext. devices
A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level
dB
Sound level @ 12 V DC
97 dB(A) (@ DIN tone)
Sound level @ 24 V DC
102,7 dB(A) (@ DIN tone)
Sound level
No. of detector/zone
Circuit
Display
Operation indicator
Alarm display
Fault display
Frequency of flash
0,5 Hz
Lighting energy
Flash color
red
Luminous intensity
max. 56 cd effective


Signal flashing lamp
Range
Connection terminal
0.5 ... 2.5 mm2
CO pre-alarm
ppm
CO alarm
ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature
Ambient temperature
-25 °C ... 70 °C
Storage temperature
Air humidity
< 95 % (non-condensing)
Air humidity
Type of protection
IP 21C, IP 65 with CWW and accessories

Protection class
Ex. protection
Category
Housing
Material
PC/ABS, UL94-V0

Installation
Signal Range
W-2,4-6,0
Mounting height wall
2.4 m
Room width
6,8 m
Category ceiling
C-3-8,9 / C-6-8,2
Mounting height ceiling
3 m / 6 m
Room diameter
8,9 m / 8,2 m
Color
red, similar to RAL 3020

cap: transparent
Weight
approx. 248 g
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length
m
Maximum sensor length
m
Detector specification
DIBt approval
Specification
EN 54-3 acoustic signaling device

EN 54-23 optical signaling device
Cable diameter
mm
Cable entry
Maximum tube length
Dimensions
Ø: 100 mm H: 98 mm

Ø: 100 mm H: 122 mm (incl. IP base)
Length
Declaration of Performance
0832-CPR-F0262
Konformität

Accessories

CWR Base deep IP 65, red

PS188 Base deep, O-Ring

PS189 Base deep, seal

Additional information

Not suitable for use outdoors or in damp areas. Please use therefore the optional bases and accessories (Part No. CWR, PS188, PS189). Use of the deep IP socket reduces the dB output by an average of 4 dB.

When using the EOL-O 808624 termination element for standard-compliant monitoring of the alarm devices, the optional deep base CWR or CWW offers a larger connection space.

Replacement for Part No. 766430.
