Addressable MCP, IP66

761694 | Addressable MCP, IP66

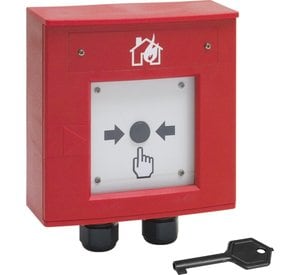

Addressable manual call point in conformity with EN 54-11 type B with loop isolator for manually triggering fire alarms or hazard alarms. For outdoor application or application in damp environments.

Part-No.:
761694
Approval:
VdS

Technical Data

Common technical data:
Leistungserklärung
Rated voltage
V AC
Rated frequency
Rated current
Output current
Battery capacity
Operating voltage
8 ... 42 V DC

Operating voltage
V DC
Operating voltage
Quiescent current
Lichtquelle
Leuchtfarbe

Quiescent current @ 9 V DC
μA
Quiescent current @ 12 V DC
Quiescent current @ 19 V DC
45 μA
Quiescent current @ 24 V DC
Quiescent current @ FACP battery
Quiescent current @ FACP battery
Quiescent current
μA
Current consumption
Current consumption
Current consumption @ 12 V DC
Current consumption @ 24 V DC
Starting current
mA
Current consumption in the case of failure
mA
Current consumption testmode
mA
Alarm current
Alarm current
Alarm current @ 9 V DC
mA
Alarm current @ 12 V DC
Alarm current @ 24 V DC
mA
Alarm current @ 24 V DC
Alarm current w/o communication curtain
mA
Power consumption
Current consumption for ext. devices
A
Testing capacity
Battery charging
Heat detector response threshold
Load factor
Contact load relay
Contact load
Sound level
dB
Sound level @ 12 V DC
Sound level @ 24 V DC
Sound level
No. of detector/zone
max. 10 (according to VdS), 127 / loop
Circuit
Display
Operation indicator
Alarm display
LED, red
Fault display
Frequency of flash
Lighting energy
Flash color
Luminous intensity


Signal flashing lamp
Range
Connection terminal
max. 1.5 mm²
CO pre-alarm
ppm
CO alarm
ppm
Area to be monitored
Height to be monitored
Air velocity
Sensitivity
Application temperature
-20 °C ... 70 °C
Ambient temperature
Storage temperature
-25 °C ... 75 °C
Air humidity
Air humidity
Type of protection
IP 66

Protection class
Ex. protection
Category
Housing
PC-plastic
Material

Installation
Signal Range
Mounting height wall
Room width
Category ceiling
Mounting height ceiling
Room diameter
Color
red, similar to RAL 3000

Weight
approx. 475 g
Weight
Optisches_Signalbild
Lebensdauer_optisch
Drehfrequenz
Abmessungen
Content
Cable length
m
Maximum sensor length
m
Detector specification
DIBt approval
Specification

Cable diameter
mm
Cable entry
Maximum tube length
Dimensions
W: 135 mm H: 135 mm D: 61 mm

Length
Declaration of Performance
DoP-20882130701
Konformität

Accessories

704910 Spare glass for MCP

769910 Plastic key for large MCP

769911 Metal key for large MCP

Additional information

Please take note, our Part No. 769910 and 769911 can be used as spare keys.

To indicate that the detector is "Out-of-order" the operator has to insert the paper inlay, which has a corresponding pictogram and wording.

Scope of delivery

1 x Glass 704910

1 x Key and “Out of order” sign or “Außer Betrieb”

Downloads

Produktdatenblatt
Ausschreibungstext

Product Data Sheet

Version: 2024-03

Language:
English
Doc extension:
pdf
